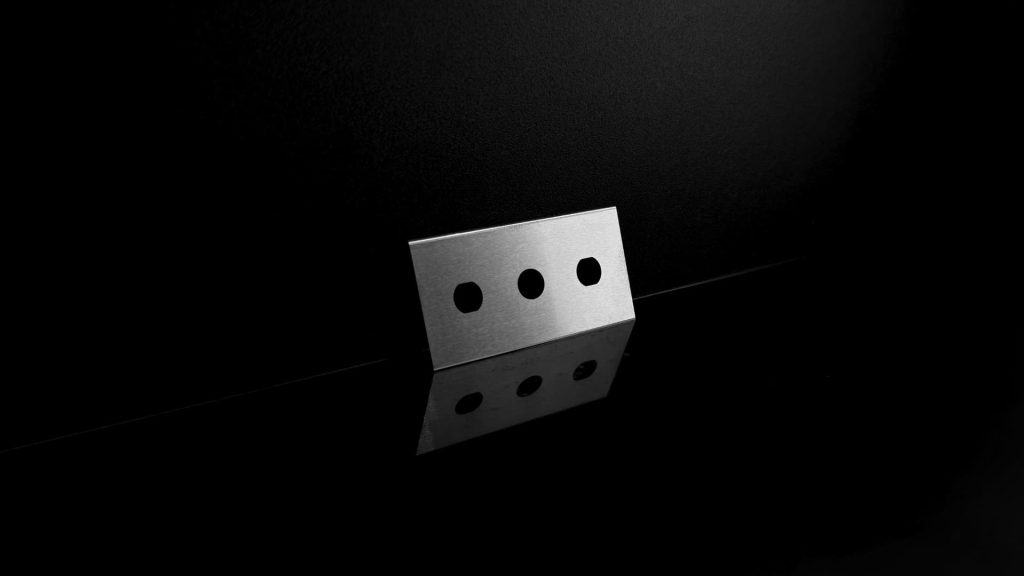

Tungsten Carbide vs HSS: Choosing the Right Blade Material for Film Slitting

Blade material selection in film and foil slitting lines directly impacts production efficiency. We compare HSS and tungsten carbide with engineering data, TCO analysis, and application-specific recommendations.

In film and foil slitting lines, blade selection is a critical engineering decision that directly impacts production efficiency — yet it is often overlooked. The market offers several material options: carbon steel, TiN-coated carbon steel, high-speed steel (HSS), and tungsten carbide (WC). However, for high-performance applications, the wrong blade choice can result in increased downtime, reduced cutting quality, and higher operating costs.

In this article, we compare both materials with engineering data and explain how to make the most suitable choice for your operation.

Section 1: Understanding the Materials

High-Speed Steel (HSS)

HSS is a tool steel containing alloying elements such as tungsten (W), molybdenum (Mo), vanadium (V), and chromium (Cr). It is designed to maintain hardness at elevated temperatures and offers high toughness compared to standard carbon steels.

• Hardness: 62–66 HRC (after heat treatment)
• Toughness: High — resistant to impact loads
• Resharpening: Fast and economical
• Cost: More affordable than tungsten carbide

Tungsten Carbide (WC-Co)

Tungsten carbide is a composite material produced by sintering tungsten carbide particles with a cobalt binder. It provides exceptional wear resistance and edge retention, making it ideal for precision film and foil slitting applications.

• Hardness: Extremely high
• Toughness: Lower than HSS but superior wear resistance
• Resharpening: Requires advanced grinding technology
• Cost: Higher initial investment

Section 2: Cutting Performance Comparison

To evaluate real-world performance, several engineering parameters must be considered:

1. Hardness — Determines edge retention and wear resistance
2. Toughness — Resistance to fracture under dynamic loading
3. Wear Resistance — Blade lifespan during continuous operation
4. Cost Advantage — Long-term operating efficiency
5. Sharpenability — Ease and speed of maintenance
6. Thermal Stability — Performance under high-speed cutting temperatures

In general, tungsten carbide significantly outperforms HSS in wear resistance and lifespan. However, HSS remains advantageous in applications requiring high impact resistance and frequent resharpening.

Section 3: Head-to-Head Comparison

The optimal blade material depends on production speed, material type, and maintenance strategy.

• Tungsten carbide delivers extremely long cutting life
• HSS provides better toughness and impact resistance
• Carbide is ideal for high-speed precision slitting
• HSS is preferred where flexibility and lower maintenance cost are priorities

Section 4: TCO — Total Cost of Ownership Analysis

Looking only at purchase price can be misleading. Total Cost of Ownership (TCO) provides a more accurate way to evaluate blade investments.

Material	Initial Cost	Cutting Lifespan	Maintenance Frequency	Overall Efficiency
Carbon Steel	Low	Short	High	Low
Coated HSS	Medium	Medium-High	Medium	High
Tungsten Carbide	High	Very Long	Low	Very High

Although tungsten carbide requires a higher upfront investment, its extended lifespan and reduced downtime often result in lower long-term operating costs in continuous production environments.

Section 5: The Third Way — Ceramic-Coated HSS

Modern coating technologies provide an alternative between standard HSS and tungsten carbide. Ceramic-coated or TiN/TiAlN-coated HSS blades can significantly improve performance while maintaining the toughness advantages of HSS.

• Improves wear resistance and edge retention
• Offers better cost-performance balance
• Suitable for medium and high-speed slitting lines
• Allows easier maintenance and resharpening

Section 6: Which Material for Which Application?

Application	Recommended Material	Why?
Thin BOPP/PET Films	Tungsten Carbide	Superior edge stability and lifespan
PE Stretch Film	Ceramic-Coated HSS	Balanced flexibility and wear resistance
Aluminum Foil	Tungsten Carbide	Excellent abrasion resistance
Paper and Board	HSS	Economical and sufficiently durable
Laminated Multi-Layer Films	Coated HSS	Improved wear balance and impact resistance

Conclusion

There is no single answer to which blade material is best. The correct choice depends on your slitting application, production speed, maintenance capability, and cost expectations.

Tungsten carbide is the preferred solution for high-speed precision lines requiring maximum blade life, while HSS remains valuable where toughness and economical operation are priorities. Coated HSS technologies provide an effective middle ground for many industrial applications.

Selecting the right blade material with proper engineering analysis can dramatically improve production efficiency and reduce long-term operational costs.

References

1. ASM Handbook — Tool Materials and Manufacturing
2. VDI Steel Institute Technical Publications
3. Industrial Slitting Engineering Guide
4. Advanced Cutting Materials for Film & Foil Processing
